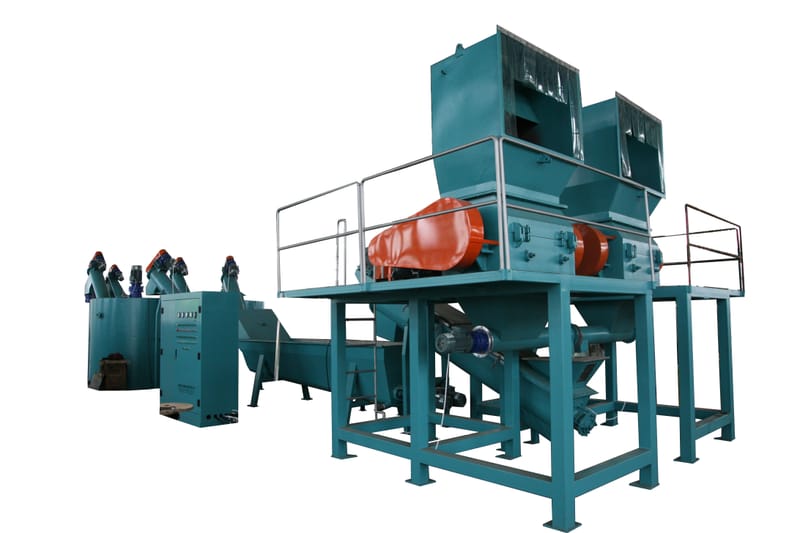

PET Bottle Crushing Washing Drying Recycling Machine Line with max 5000kg/h
Hot Washer Steam machine will add Soda inside ,and the temperature should be over 95°. This unit will go though gas ,electric or diesel ,which is more cheaper in your country ,you can choose it. Label remover machine has two type ,one is with water, the other is without water. Both of them can take out labels ,and the rate can meet 90%.
- Category: PET Bottle Washing Line
Description
Product Description
- Capacity :500g/h, 1000kg/h, 1500kg/h, 2000kg/h, 3000kg/h or according to client's demand
- Material: Plastic Cola bottles, plastic Pepsi Cola bottles, plastic Mineral water bottles and other bottles which remarked PET.
Advantage :
- Hot Washer Steam machine will add Soda inside ,and the temperature should be over 95°. This unit will go though gas ,electric or diesel ,which is more cheaper in your country ,you can choose it.
- Label remover machine has two type ,one is with water, the other is without water.
Both of them can take out labels ,and the rate can meet 90%.
- The material which is with water used stainless steel ,it make more long life of the line.
Which Final products we can do after washing?
The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.
Main Technical:
Input capacity | 500kg/h | 1000 kg/h | 2000 kg/h | 3000kg/h |
Dimension(M*M*M) | 42 (L)×10(W)×6(H) | 55(L)×15(W)×6(H) | 70(L)×18(W)×6(H) | 80(L)×20(W)×6(H) |
Workers | 6Persons | 8 Persons | 12 Persons | 14 persons |
Installation power | 156KW | 307KW | 420KW | 610KW |
Water Consumption: | 3-5Ton/h | 8-10Ton/h | 10-15Ton/h | 15-20t/h |
Final prodct | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm | |||
Above date is only for reference. We design pet bottle recycling line according to different raw material and above date will be different.
STPLAS is a professional factory for manufacturing series waste plastic recycling system include crushing washing drying and pelletizing (PET bottle ,PE/PP film, bags, HDPE bottle /PP barrel etc.).
If you want more details of our waste plastic bottle recycling machine/ plastic pelletizing line, Contact with us freely!
