PET Pelletizing Machine Line
PET pelletizing machine twin screw extruder with Compounding mixer feeder Description Of PET pelletizing machine Twin screw extruder recycling pelletizing system no need Pre-crystallization drying system, it also can control PET Intrinsic viscosity to reach very ideal state, IV reduce very less, Chemical viscosifying can be achieved under suitable auxiliary conditions
- Category: PET Pelletizing Machine Line
Description
PET pelletizing machine twin screw extruder with Compounding mixer feeder
Description Of PET pelletizing machine
Twin screw extruder recycling pelletizing system no need Pre-crystallization drying system, it also can control PET Intrinsic viscosity to reach very ideal state, IV reduce very less, Chemical viscosifying can be achieved under suitable auxiliary conditions
The Complete system of compounding PET pelletizing extruder include:
1. Quantitative feeding
2. ST-TSE series parallel twin screw extruder
3. Vacuum system
4. Double station hydraulic screen changer
5. Water cooling tank
6. Wind dryer
7. Cutter
8. Storage Hopper
9. Control cabinet
Technical Parameter:
Mode | Diameter | L/D | Screw Speed | Screw Torque | Motor Power | Capacity | Weight |
ST-TSE-40B | 41mm | 32-52 | 600r/min | 239N.m | 30kw | 90-150kg/h | 3000kg |
ST-TSE-50A/B | 50.5mm | 32-52 | 500r/min | 430N.m | 45-55kw | 135-270kg/h | 3000kg |
ST-TSE-65B | 62.4mm | 32-64 | 600r/min | 716N.m | 90kw | 200-300kg/h | 4000kg |
ST-TSE-75B | 71mm | 32-64 | 600r/min | 1050N.m | 132kw | 350-550kg/h | 4000kg |
ST-TSE-75D | 71mm | 32-64 | 600r/min | 1990N.m | 200-250kw | 500-1000kg/h | 4000kg |
ST-TSE-95B | 93mm | 32-64 | 600r/min | 2506N.m | 315kw | 800-1200kg/h | 4000kg |

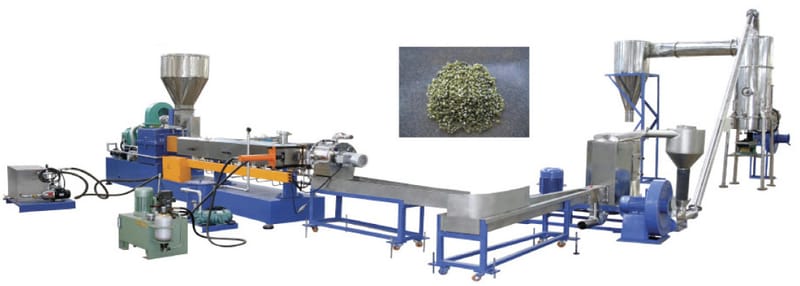

More Photos of PET pelletizing machine:
STPLAS Machinery is a professional factory for manufacturing to do waste plastic recycling equipment (PET bottle recycling; PE/PP film, bags recycling, HDPE bottle /PP barrel recycling, and shredder ,crusher ,mixer ,film squeezer machine ,etc).
If you want more details, contact with us freely!
