PET Strap Plastic extruder making machine
This machine is main used to make pet strap ,pet packing strap .pet band Adopt the PLC control the whole line do the automatic production.
- Category: PET strap making machine
Description
Product name: PET strap making machine
Material: PET recycled bottle flakes or PET polyester pellets
Output: 100-300kg/h
Power consumption: 50kw/h
Water consumption: 3-5m3, (recycle)
Belt Width: 9-20mm
Belt Thickness: 0.5-2mm
factory requirement: Length: 25-30m, Width: 5m, height: 5.5m.
Advantage of PET strap production line:
1.Use 100% Recycled PET Flakes to reduce the cost
2.Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping
3.Special design hot forming tensile tank to make good forming ,equal width, straight.
Main Technical parameter:
Model | Capacity (kg/h) | Tape size (mm) | Installed power (kw) | Man power (person) |
SJ75/30 Single tape | 80-100 | 9-25 | 100 | 1-2 |
SJ90/33 double tape | 200-250 | 9-30 | 150 | 1-2 |

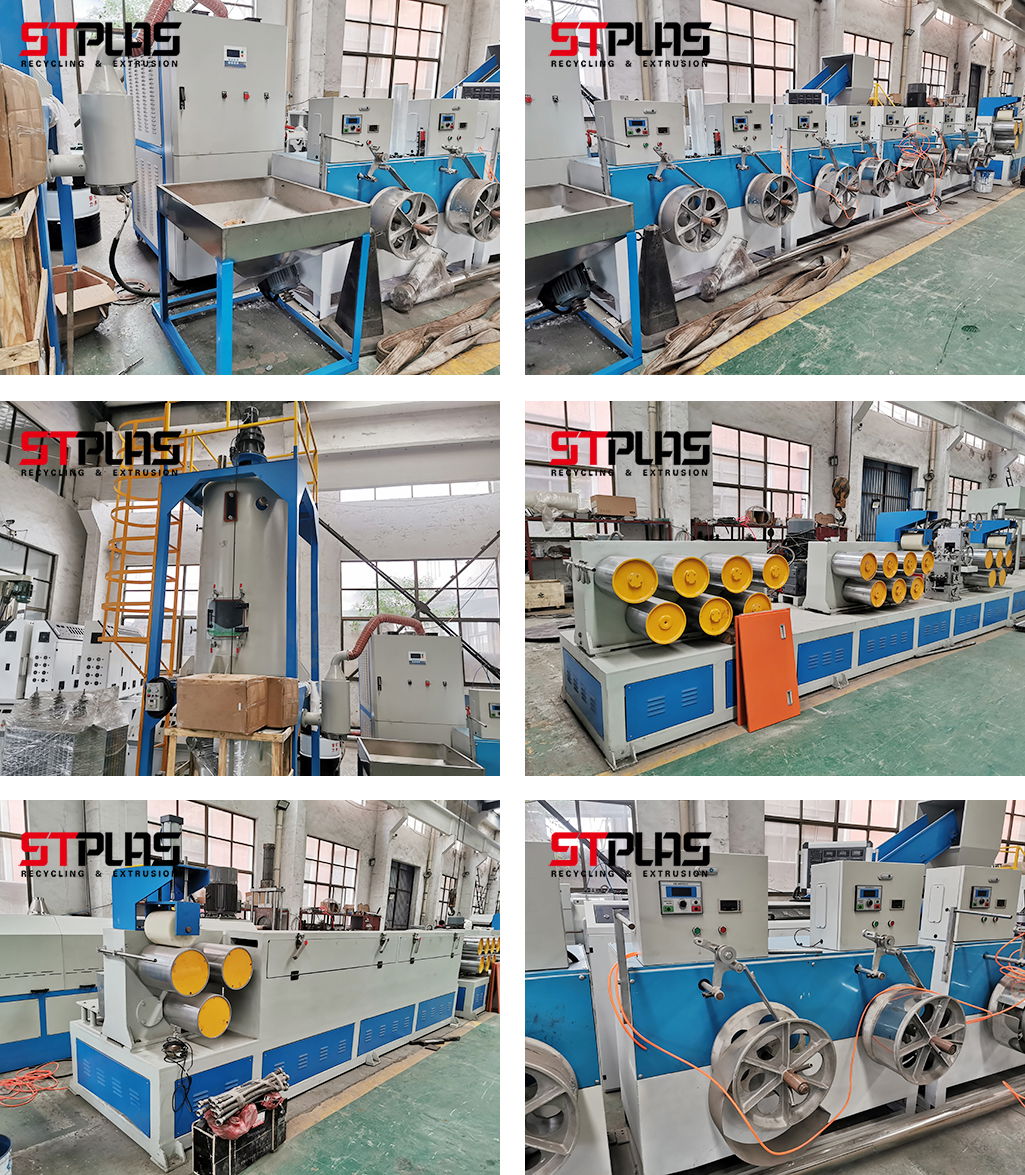

More Photos of PET strap production line:
