Plastic Crusher and Shredder Machine
This unit machine can be a variety of large and thick torn and broken material to achieve the good effect. The machine uses a densely arranged knife structure, Hydraulical driven pusher feeding, has strong crushing ability, high efficiency.
- Category: Plastic Crusher and Shredder
Description

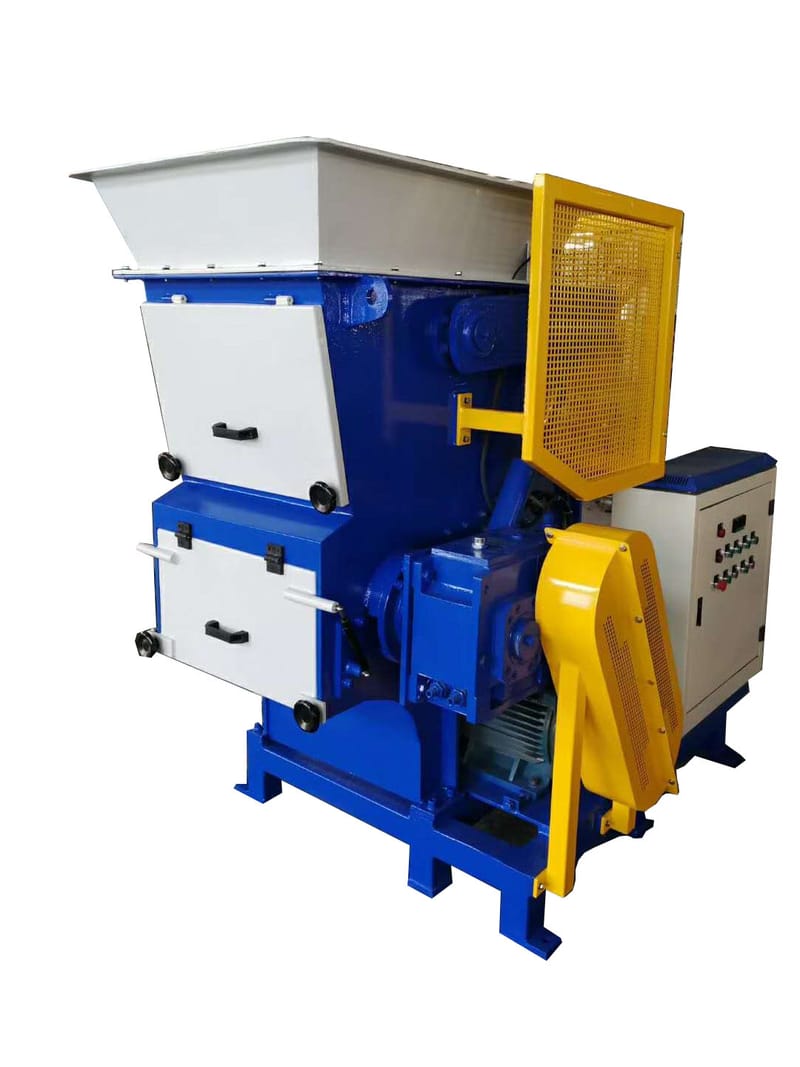

Shredder and crusher machine
Single shaft shredder and crusher one unit machine is a machine which solve the big material for the shredder, the final scrap according the mesh size can catch small piece about 10-20mm.
Features:
This unit machine can be a variety of large and thick torn and broken material to achieve the good effect.
The machine uses a densely arranged knife structure, Hydraulical driven pusher feeding, has strong crushing ability, high efficiency.
Use and performance:
This machine is mainly used for crushing and recycling of various wall thickness waste plastics, wood scraps and pipe materials in the plastics industry.
The machine has the characteristics of stable crushing performance, high efficiency and low temperature, convenient operation, multiple switch protection, safe and reliable.
Technical Parameter of shredder crusher machine:
Model | ST600 | ST800 | ST1000 |
Capacity | 250-400 | 400-600 | 600-800 |
Shredder motor power (KW) | 18.5 | 45 | 55 |
Shredder rotatory blade (pcs) | 28 | 46 | 64 |
Shredder Fixing Blade (pcs) | 4 | 4 | 4 |
Hydraulic power (KW) | 2.2 | 2.2 | 4 |
Crusher rotatory blades (pcs) | 18 | 24 | 30 |
Crusher Fixing Blade (pcs) | 4 | 4 | 4 |
Motor Power(KW) | 15 | 22 | 30 |
Screen Hole(mm) | 6-20 | 6-20 | 6-20 |
Inlet mouth size(mm) | 600*600 | 800*800 | 1000*1000 |
Fan Power(kw) | 4 | 5.5 | 5.5 |
Dimension(mm) | 2200*2000*2300 | 2600*2300*2750 | 2900*2600*2800 |
Weight(kgs) | 3800 | 5000 | 6500 |
