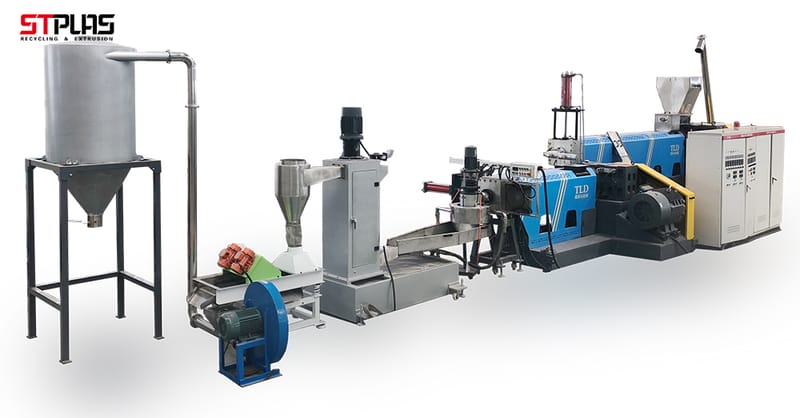

HDPE hard flakes pelletizing line
This HDPE flakes pelletizing line special for hard material like clean bottle flakes, chair flakes, container flakes etc., It has water ring cutting and strand pelletizing two type optional, For strand pelletizing type, it also can used for ABS,PS hard material.
- Category: PP PE Pelletizing Machine Line
Description
After granulating/pelletizing machine, the new granules can be make new plastic product.
Applicable plastics material: PP, BOPP, PE, HDPE, LDPE , LLDPE , PC , ABS.
As for different material and different customer requirement. We make different DIY specifications:
- Single stage/ Double stage
- Different L/D ratios
- Multiple exhaust screw
- Water ring cutting/ strand pelletizing
- Capacity from 200-300kg/h,400-500kg/h, 700-800kg/h, 900-1000kg/h.
The pallets can be sold directly, or go to extruder, injection molding, film blowing etc.
.
Main Technical Parameter:
Single Stage:
Model | STSJ90 | STSJ 100 | SJ120 | STSJ130 | STSJ160 | STSJ180 |
Screw Dia. | 90 | 100 | 120 | 130 | 160 | 180 |
L/D Ratio | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 |
Capacity (kg/h) | 150-200 | 200-250 | 250-350 | 450-550 | 650-800 | 800-1000 |
Main Motor Power(kw) | 55 | 75 | 90 | 132 | 160 | 250 |
Total Electric Power(kw) | 110 | 135 | 160 | 215 | 263 | 375 |
Double Stage:
Model | STSJ90/90 | STSJ100/100 | STSJ120/120 | STSJ130/130 | STSJ160/160 | STSJ180/200 |
Screw Dia. | 90 | 100 | 120 | 130 | 160 | 180 |
L/D Ratio | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 |
Capacity (kg/h) | 150-200 | 200-250 | 250-350 | 450-550 | 650-800 | 800-1000 |
First Stage Motor (kw) | 55 | 75 | 90 | 132 | 160 | 250 |
Second Stage Motor(kw) | 22 | 30 | 37 | 45 | 55 | 75 |
Total Electric Power(kw) | 150 | 185 | 220 | 285 | 350 | 490 |
