PP PE Pelletizing Machine Line
STPLAS is a professional manufacture to do series waste plastic recycling equipment (PET bottle recycling; PE/PP film, bags recycling, HDPE bottle /PP barrel recycling, and Other waste plastic recycling such as PVC, PS, EPS, PC,ABS etc). If you want more details of our waste plastic crushing washing recycling machine/ plastic pelletizing line, feel free to contact with us please!
- Category: PP PE Pelletizing Machine Line
Description
PP PE film pelletizing line waste plastic recycling machine with compactor granulator
Which Kind Raw Material can be used in this line?
-PP PE BOPP LDPE HDPE LLDPE films, bags, woven bags, shopping bags, fibers etc.
What Is The Capacity Can We do?
-The complete line of waste plastic film recycling machine can make the capacity from 80-1000kg/h. .
The complete line of compactor film pelletizing line include below items:
No | Machine Name | QTY(SET) | Remarks |
1. | Belt Conveyor | 1 | |
2. | Compactor/Agglomerator | 1 | |
3. | Single screw Extruder | 1 | |
4. | Sub-Feeder (to make modified pellets) | 1 | Optional |
5. | Screen changer | 1 | |
6. | Second Stage single screw extruder | 1 | Optional |
7. | Screen changer | 1 | Optional |
8. | Die head | 1 | |
9. | Water ring cutter | 1 | |
10. | Hydraulic station | 1 | |
11. | Vibrating screen Machine | 1 | |
12. | Dewatering machine | 1 | |
12 | Storage hopper | 1 |
One Stage single screw extruder pelletizer Technical Parameter:
Extruder Model | Compactor Power | Extruder Power | Capacity (kg/hr) |
ST-SJ70 | 30KW | 37KW | 80-110 |
ST-SJ85 | 37KW | 55KW | 180-250 |
ST-SJ100 | 55KW | 90KW | 250-300 |
ST-SJ120 | 75KW | 110KW | 300-400 |
ST-SJ130 | 90KW | 132KW | 400-500 |
ST-SJ150 | 90KW | 160KW | 500-600 |
ST-SJ160 | 110KW | 185KW | 600-700 |
ST-SJ180 | 160KW | 250KW | 800-1000 |
Two Stage PP PE pelletizing line Main technical Parameter:
Model | Screw diameter | L/D | sub screw diameter | L/D | Capacity(kg/h) | Total power |
SJ100 | 100mm | 30-34 | 100mm | 10:1 | 200-250 | 90kw,22kw |
SJ120 | 120mm | 30-34 | 120mm | 10:1 | 300-350 | 110kw,30kw |
SJ130 | 130mm | 30-34 | 130mm | 10:1 | 350-400 | 132kw,37kw |
SJ150 | 150mm | 30-34 | 150mm | 10:1 | 400-500 | 160kw,45kw |

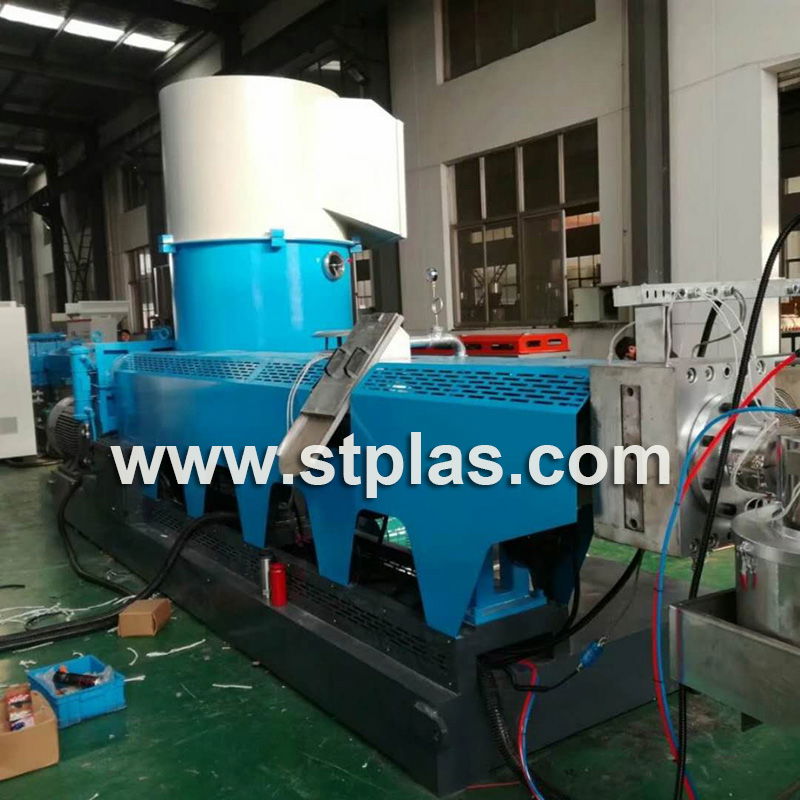

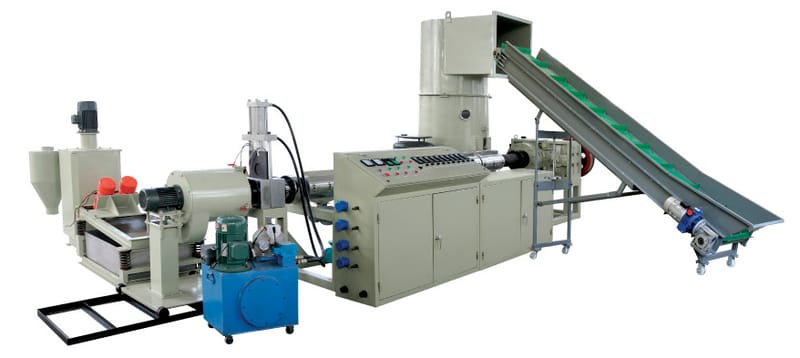

More Photos :
STPLAS is a professional manufacture to do series waste plastic recycling equipment (PET bottle recycling; PE/PP film, bags recycling, HDPE bottle /PP barrel recycling, and Other waste plastic recycling such as PVC, PS, EPS, PC,ABS etc).
If you want more details of our waste plastic crushing washing recycling machine/ plastic pelletizing line, feel free to contact with us please!
