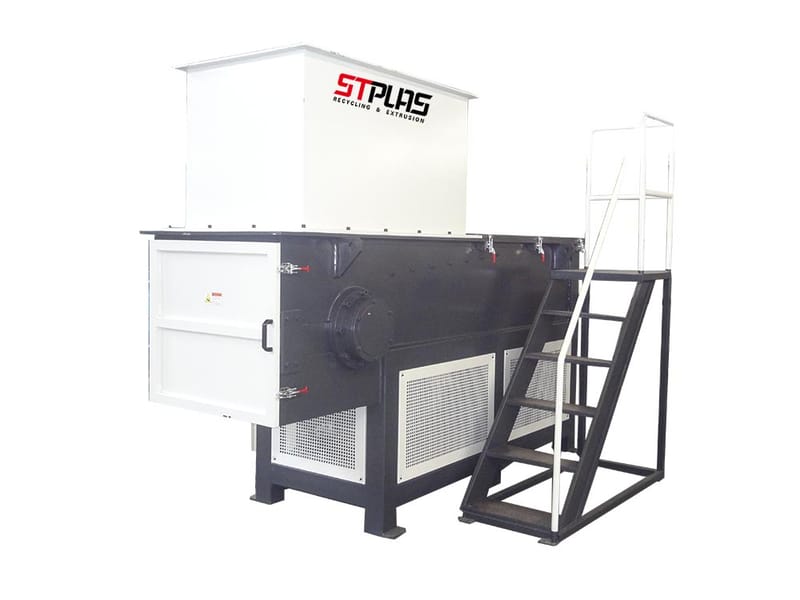

ST1-600 Single Shaft Shredding machine

Plastic shredding machine include single shaft shredder, double shaft shredder and four shaft shredder. Single /double shaft shredding machine are widely used. We will introduce single shaft shredding machine here.

  • Category: Single Shaft Shredder

Description

Single Shaft Shredding machine Application:

Suitable for shredding materials, such as plastic lumps, plastic pipes(Diameter over 4mm),  etc. hard plastic materials.

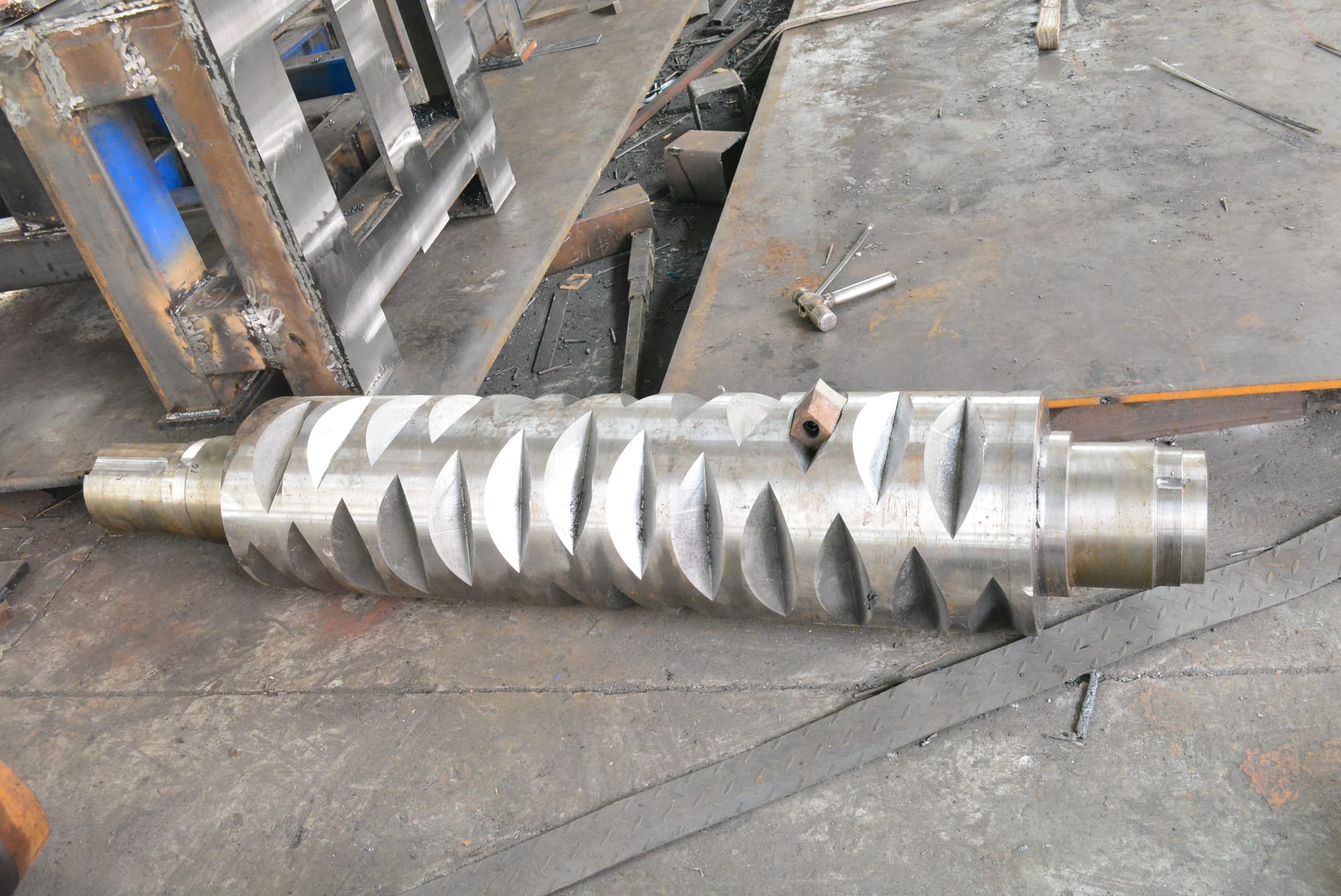

Main Shaft is very important in single shaft shredder. STPLAS main shaft is after special treatment, the material is particularly strong and durable, not easy to break.

Main Technical Parameter of single shaft shredder:

Model

ST1-600

ST1-800

ST1-1000

ST1-1200

Push Power(k\w)

1.5

2.2

2.2

5.5

Mainmotor power

(k\w)

18.5

37

37

55

Rotary blade

28

38

48

58

Stationary blade

2

2

4

4

Shaft diameter(mm)

220

400

400

400

Rotate speed(r/min)

90

85

80

75


The Blades have different, SKD-II, D2, H13 etc. It depend which raw material will you use, fell free to contact with us for more details.
