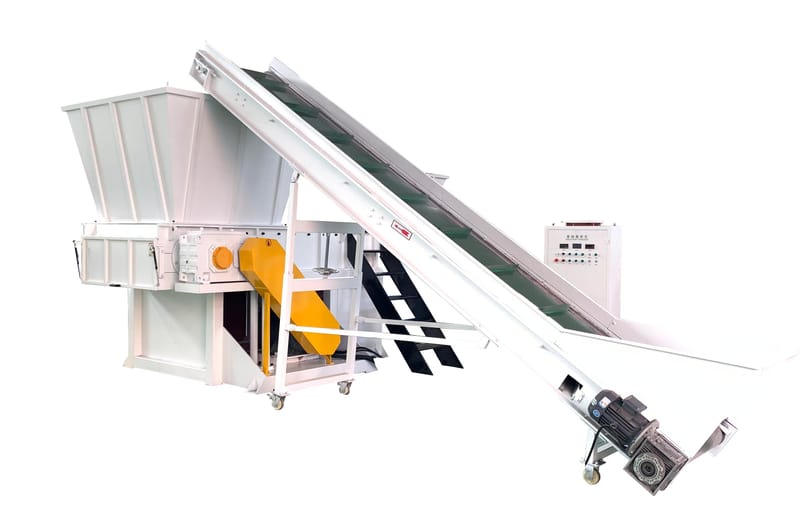

ST1-800 Plastic lump Shredder Machine plant

  • Category: Single Shaft Shredder

Description

Products Description:

1. This Plastic Single Shredder is suitable to shred different things such as WOOD, WOOD pallet,  big plastic blocks, Big plastic pipe etc.

 2. Each Rotating blades has four cutting edges which enable reutilization after being abraded, by rotator 90 degree. 3. Each fixed blades has two cutting edges which enable reutilization after being abraded, by rotator 180 degree.
5. Screen mesh size can be designed according your customer requirement.

Main Technical Parameter:

Model

ST1-600

ST1-800

ST1-1000

ST1-1200

Push Power(k\w)

1.5

2.2

2.2

5.5

Mainmotor power

(k\w)

18.5

37

37

55

Rotary blades

28

38

48

58

Stationary blade

2

2

4

4

Shaft diameter(mm)

220

400

400

400

Rotate speed(r/min)

90

85

80

75


Video of single shaft shredder to make lumps to pieces:

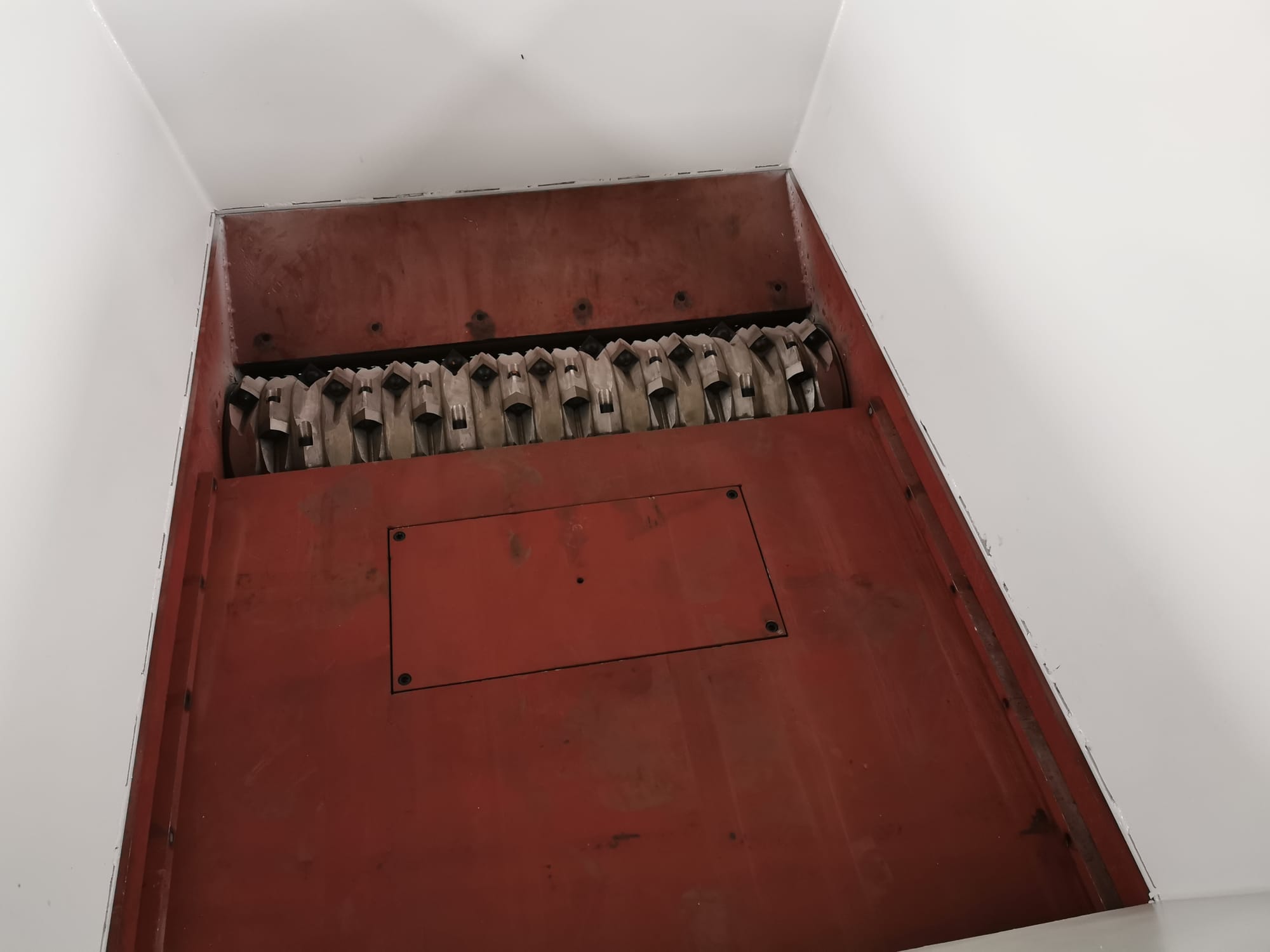

Inside of the shredder Chamber:

Big enough to feed the material.

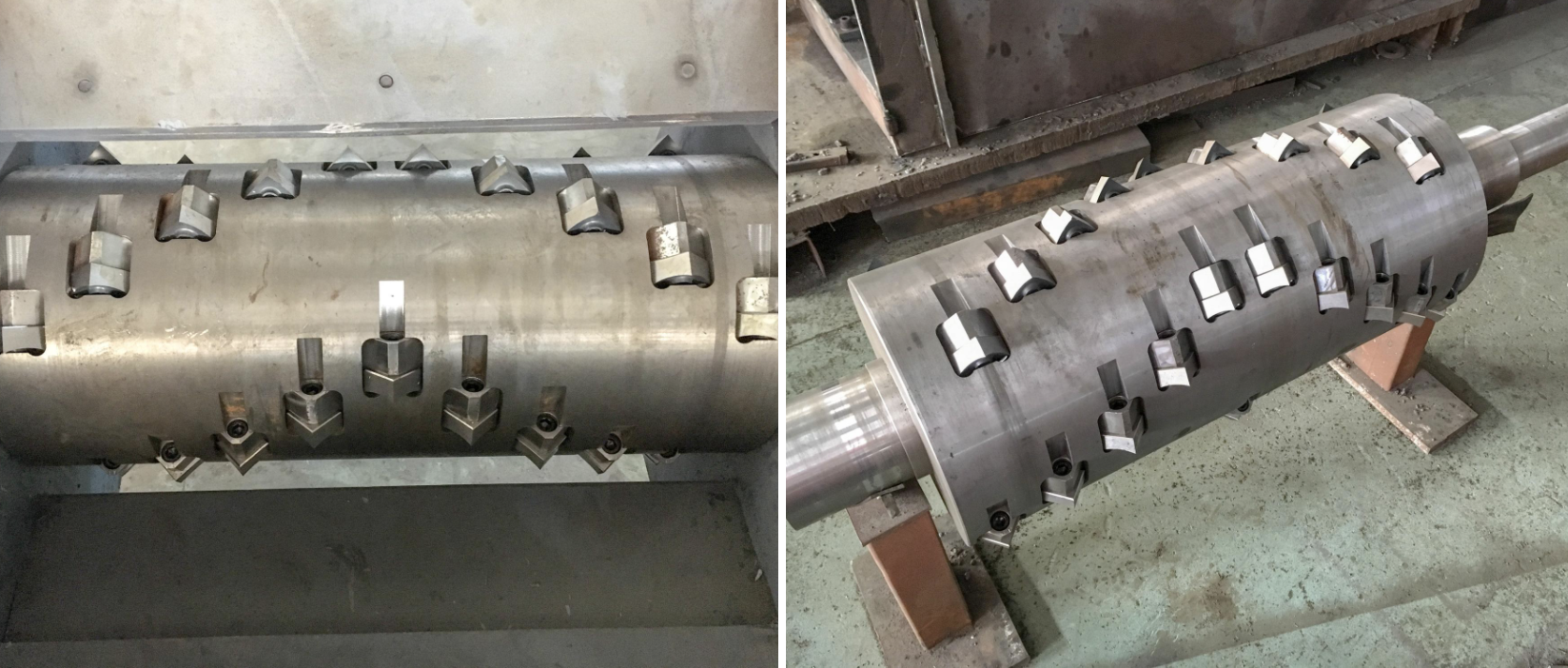

Good quality of Main Shaft.38 Rotator Blades for Model 800 size.

Features
1. It adopts PLC control system, automatic overload protection and auto reverse switch
2. Good shaft structure design, low noise, blades easy changeable
3. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation
4. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

If you want to know more information, feel free to contact us
